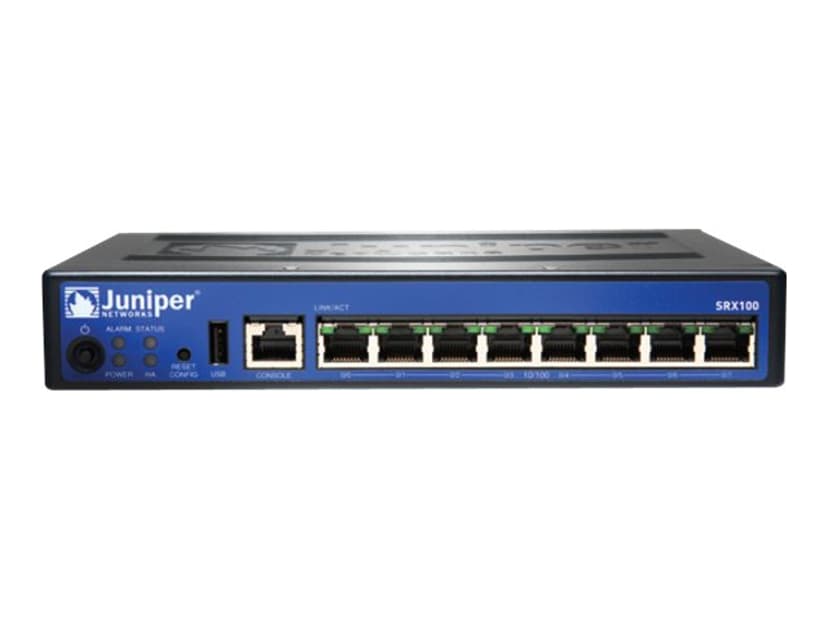

Juniper Networks SRX100 Services Gateway

3 795 kr 120 kr/mnd (Ved leie i 36 måneder)
  • Lagerstatus: Bestillingsvare
  • Frakt fra: 99 kr
  • Artikkelnr.
  • 5010874313
  • Prod. art. nr.
  • SRX100H2

Raske fakta

200 Mbit/s
Gjennomstrømmingshastighet VPN
100 Mbit/s
Maks IPsec-Tunneler
128 st
Maks SSL-Tunneler
128 st


  • Network attack detection
  • Dos and DDoS protection
  • TCP reassembly for fragmented packet protection
  • Brute force attack mitigation
  • SYN cookie protection
  • Zone-based IP spoofing
  • Malformed packet protection


  • Stateful protocol signatures
  • Worm protection
  • Simplified installation through recommended policies
  • Trojan protection
  • Protection against attack proliferation from infected systems
  • Compound attacks - combines stateful signatures and protocol anomalies
  • Create and enforce appropriate application-usage policies


The Juniper Networks SRX100 Services Gateway offers features that provide complete functionality and flexibility for delivering secure Internet and intranet access. The services gateway offers stable, reliable, and efficient IP routing in addition to switching support and LAN connectivity. The device provides Internet Protocol Security (IPsec), virtual private network (VPN), and firewall services for small-sized and medium-sized companies and enterprise branch and remote offices. The SRX100 Services Gateway can be connected directly to a traditional private networks such as leased lines, frame relay, or Multi Protocol Label Switching (MPLS) networks or to the public Internet.


Produsent Juniper Networks
Strømforsyningstype Internal power supply
Nettverkstilknytning / Produktformfaktor Rackmonterbar
Nettverk / Type Sikkerhetsapparat
Miscellaneous / Rack Mounting Kit Included
General / Height (Rack Units) 1U
Expansion / Connectivity
Interfaces 8 x 100Base-TX - RJ-45 ¦ 1 x USB - Type A
Compliant Standards
Compliant Standards FCC Class B certified, CTR 21, ICSA IPSec certified, ICSA Firewall certified, CISPR 22 Class B, EN55022 Class B, CB, AS/NZS 60950-1, EMC, DOC, CS-03, FIPS 140-2, EN300-386, UL 60950-1, EN 60950-1, ICES Class B, EAL 4, NEBS, CAN/CSA C22.2 No. 60950-1, TIA/EIA/IS-968, AS/ACIF S002, EMI, VCCI Class B, AS/ACIF S043.1:2003, AS/ACIF S043.2:2006
Nettverk og kommunikasjon
Gjennomstrømmingshastighet 200 Mbit/s
Gjennomstrømmingshastighet VPN 100 Mbit/s
Maks IPsec-Tunneler 128 st
Maks SSL-Tunneler 128 st
Tilkoblingsteknologi Kablet
Datakjedeprotokoll Ethernet, Fast Ethernet, RS-232, X.21, V.35, RS-449, Ethernet, Fast Ethernet, RS-232, X.21, V.35, RS-449
Nettverkstilknytning / Nettverks-/transportprotokoll RSVP, SMTP, FTP, DHCP, POP3, IMAP, IPSec, PPPoE
Kompatibel standard IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ad
Network & Communication
Transport Protocol RSVP, IPSec, PPPoE, SMTP, FTP, DHCP, POP3, IMAP
Data Link Protocol Ethernet, Fast Ethernet, RS-232, X.21, V.35, RS-449
Networking / Features Firewall protection, Layer 2 switching, NAT support, VPN support, PAT support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, content filtering, DiffServ support, IPv6 support, Intrusion Prevention System (IPS), firmware upgradable, DDos attack prevention, Weighted Random Early Detection (WRED), Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, anti-spam protection, Quality of Service (QoS), DHCP server, IPv4 support, fanless, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), role based access control, J-Flow, static routing, policy based access control, tagged VLAN
Networking / Authentication Method SecurID, RADIUS, X.509 certificates, LDAP, XAUTH authentication
Portantall 8
Størrelser og vekt
Yttermål Bredde 21.6 cm
Yttermål dybde 14.7 cm
Yttermål Høyde 3.6 cm
Vekt 1.1 kg
