Startech USB 3.0 HDD Dock 2.5/3.5" SATA & IDE UASP

645 kr
  • Lagerstatus: Sendes omgående 1 på lager
  • Frakt fra: 99 kr
  • Artikkelnr.
  • 5010914077
  • Prod. art. nr.

Raske fakta



  • Maximum versatility with support for SATA and IDE as well as 2.5in and 3.5in HDDs & SSDs
  • Optimal performance with support for SATA III & UASP

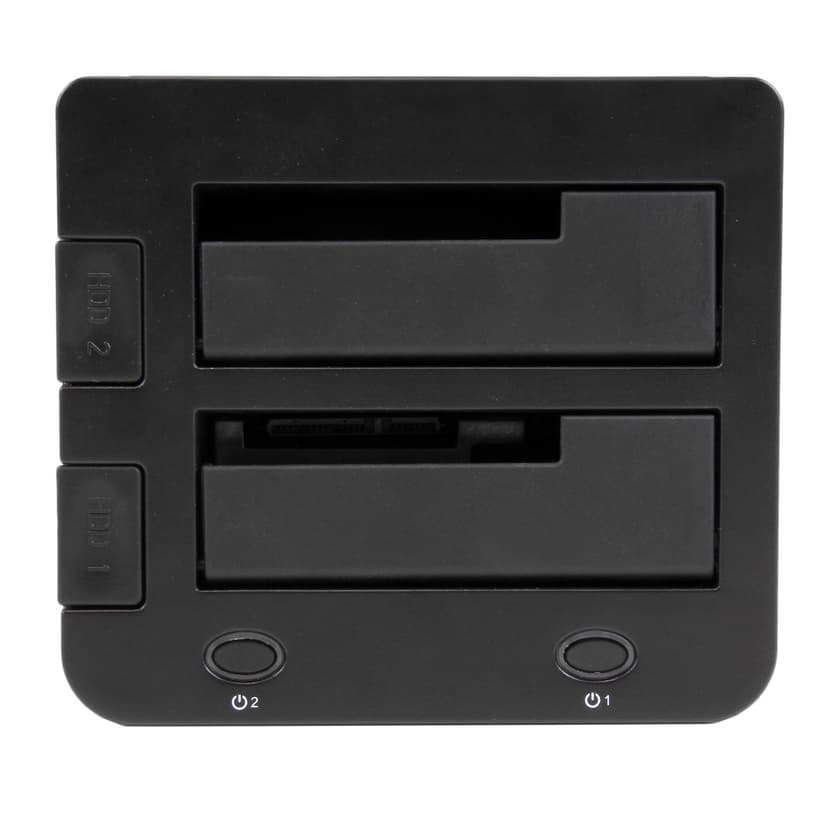

  • Hassle-free operation with upright slot-loading SATA and IDE drive bays
  • Compatible with USB 3.0/2.0/1.1
  • Compatible with SATA revision I/II/III drives
  • Compatible with PATA (IDE) 66/100/133 MBps hard drives

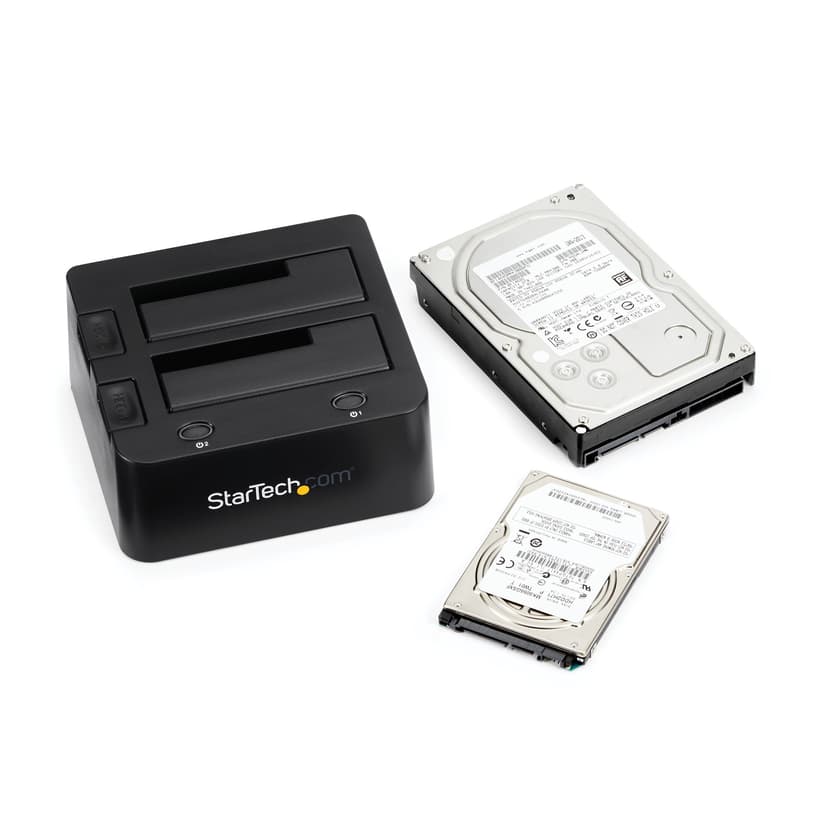

  • Supports 2.5" or 3.5" form factor hard drives (HDD) or solid state drives (SSD)


  • Compact, desktop-style form factor
  • Plug-and-Play and hot-swap compatible
  • Patented drive ejection mechanism for SATA drives
  • Combined power switch and status LED for each drive

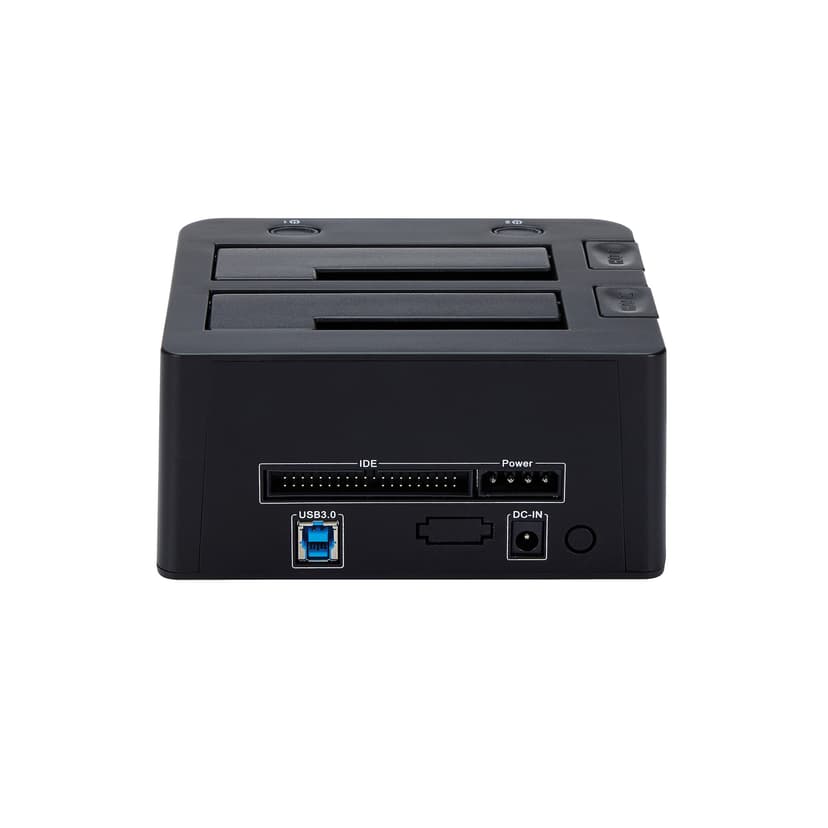

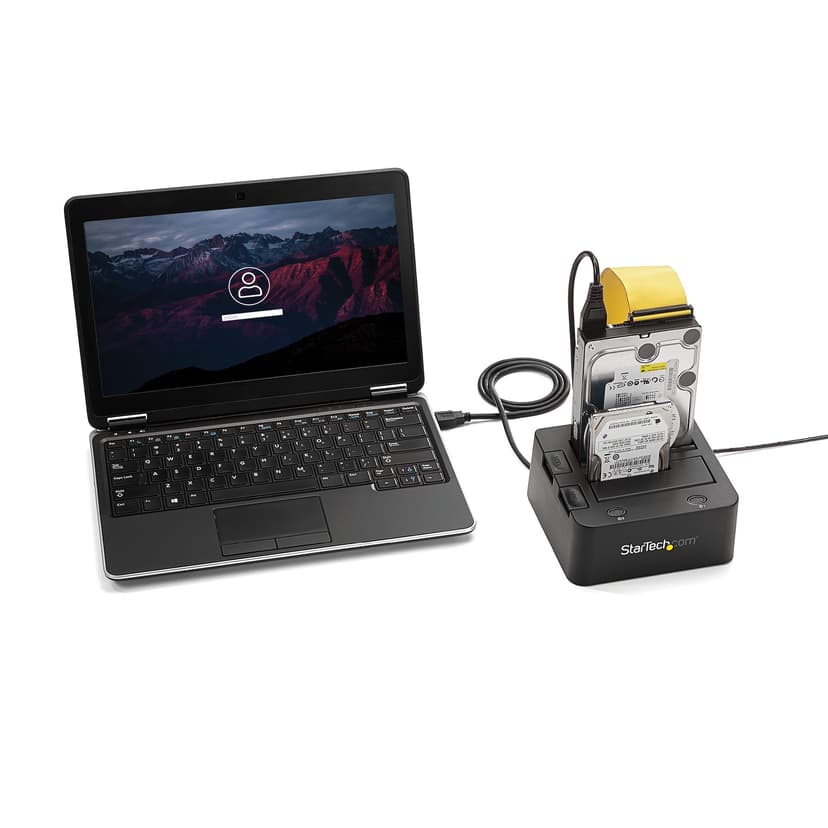

Connect both an IDE and a SATA 2.5/3.5in hard drive or solid state drive to your computer system using an available USB 3.0 port, with support for UASP for optimal performance. The UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray.Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller.The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.At the same peak in testing UASP also shows an 80% reduction in required processor resources.Testing results were obtained using an Intel Ivy Bridge system, a UASP-enabled Enclosure, and a SATA III solid state drive.


Antall pakker 1
Modell Universal Dock for 2.5/3.5in SATA & IDE HDD - USB 3.0 with UASP
Farge Svart
Produktformfaktor Ekstern
Interface USB 3.0
Grensesnitt ATA / SATA 6Gb/s
Maks. antall lagringsenheter 2
Støttede enheter Faststoffstasjon, Harddisk
Storage Controller
Data Transfer Rate 600 MBps
Nødvendig spenning AC 120/230 V
Produkttype Diskkontroller
Farge Svart
Device Type Storage controller - external
Colour Black
Inkludert tilbehør

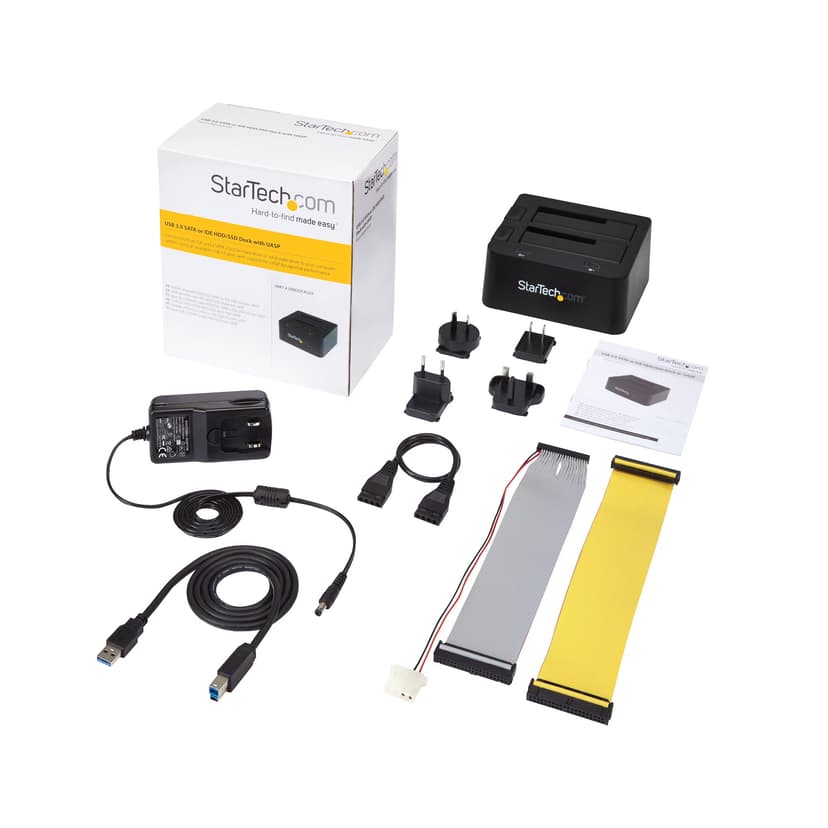

Inkluderte kabler 1 x USB 3.0 cable - external ¦ 2 x IDE cable - external
Påkrevd operativsystem Apple MacOS X 10.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Google Chrome OS, Linux, Apple MacOS X 10.7 Lion, Windows 8 (32/64 bits), Apple MacOS X 10.8, Windows 8.1 (32/64 bits), Apple MacOS X 10.9
Expansion / Connectivity
Connections 1 x USB 3.0 - 9 pin USB Type B
Interfaces 1 x SATA 6Gb/s - 22 pin Serial ATA ( internal (bay1) ) ¦ 1 x ATA-133 - 40 PIN IDC ( rear )
Bays 1 x hot-swap - 2.5" / 3.5" shared ¦ 1 x top accessible - 2.5" / 3.5" shared
Tilpassede standarder
Standarder som følges Plug and Play, FCC, RoHS
Features LED indicator, tested with up to 1TB 5400 RPM 2.5” hard drives, tested with up to 6TB 7200 RPM hard drives, UASP transfer protocol
MTBF 30,000 hours
Laveste temperatur ved drift 5 °C
Høyeste temperatur ved drift 80 °C
Luftfuktighet ved drift 8 - 90%
Service og støtte
Service og støtte 2 års garanti
Service & Støtte, detaljer 2 år
Service & Støtte 2 år
Harddiskformfaktorkompatibilitet 2.5", 3.5"
Diverse / Harddiskformfaktorskompatibilitet (metrisk) 6.4 cm, 8.9 cm
Størrelser og vekt
Yttermål Bredde 14 cm
Yttermål dybde 13 cm
Yttermål Høyde 7 cm
Vekt 0.61 kg
