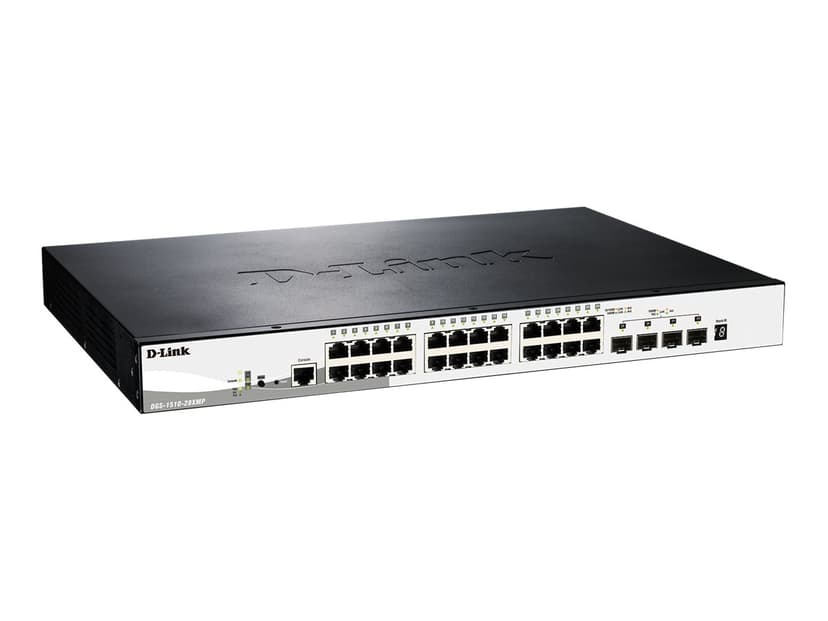

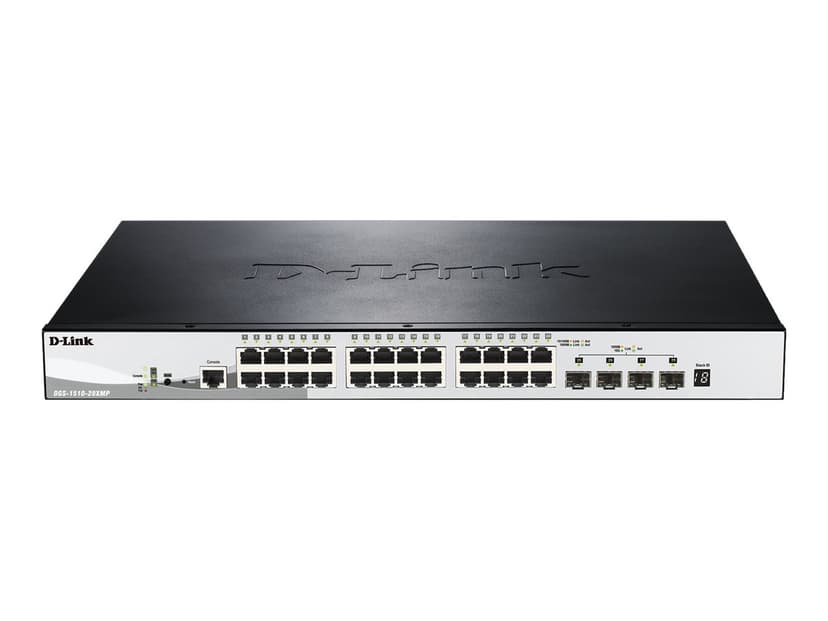

D-Link SmartPro DGS-1510-28XMP
- Lagerstatus: Sendes omgående 1 på lager
- Frakt fra: 99 kr
- Artikkelnr.
- 5010992608
- D-Link
- Prod. art. nr.
- DGS-1510-28XMP
Raske fakta
Portantall
28
Nøkkelfunksjoner
- SmartPro 28-Port Gigabit PoE Switch with 24 PoE/PoE+ Ports and 4 SFP+ Ports
- Auto Surveillance VLAN
- Up to 370W PoE Budget
- 4 x 10Gb SFP+ Ports
Produktinformasjon
The DGS-1510 Series is D-Link’s latest generation of SmartPro switches with 10G port connectivity, making them ideal for deployment in SME/SMB networks. The DGS-1510 Series provides a reliable, scalable, and modular interconnection between core switches and edge switches with rich capabilities and simplified flexibility. Available in 16, 24 and 48 10/100/1000 Mbps port models, these switches also include four optical ports – including 2 Gigabit SFP and 2 10G SFP+ ports. The 24 and 48 port versions are also available with 4 10G SFP+ ports instead of the 2 Gigabit plus 2 10G configuration.Spesifikasjoner
| Topptekst | |
|---|---|
| Produsent | D-Link |
| Nettverk og kommunikasjon | |
| Protokoll for fjernstyrt administrasjon | SNMP 2c, HTTP, SNMP 3, Telnet, CLI, TFTP, RMON 1, SNMP 1 |
| Generelt | |
| Avansert omkobling | Lag 3 |
| Ekstra funksjoner | Flow control, full duplex capability, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, Deficit Weighted Round Robin (DWRR), LLDP support, IP-MAC binding, SNMP trap, DHCP client, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), tagged VLAN, Generic VLAN Registration Protocol (GVRP), D-Link Single IP Management (SIM), DiffServ Code Point (DSCP) support, 2 fans |
| Krypteringsalgoritme | SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS |
| Tilpassede standarder | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Protokoll for fjernstyring | SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI |
| MAC Address Table Size | 16K |
| Ytelse | Switching capacity: 128 Gbps ¦ Forwarding performance (64-byte packet size): 95.24 Mpps ¦ Stacking bandwidth: 40 Gbps |
| Porter | 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Subtype | Gigabit Ethernet |
| Tilpassede standarder | |
| Kompatible standarder | VCCI, C-Tick, BSMI, cUL, CB, CCC, FCC |
| Ekspansjon / Tilkoplinger | |
|---|---|
| Tilkoblinger | 24 x 1000Base-T - RJ-45 - PoE+ - 30 W ¦ 4 x 10GBase-X - SFP+ ¦ 1 x console - RJ-45 - management |
| Størrelser og vekt | |
| Yttermål Bredde | 44 cm |
| Yttermål dybde | 30.85 cm |
| Yttermål Høyde | 4.4 cm |
| Vekt | 4.25 kg |
| Service og støtte | |
| Service & support | 5 års garanti |
| General | |
| Encryption Algorithm | SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS |
| Authentication Method | RADIUS, Secure Shell v.2 (SSH2) |
| Nettverk | |
| Portantall | 28 |
| Nettverkstilknytning / Strøm via Ethernet (PoE) | PoE+ |
| Nettverkstilknytning / Formfaktor | Stasjonær, Rackmonterbar |
| Nettverkstilknytning / Jumborammestøtte | 9000 byte |
| Nettverkstilknytning / Håndterbar | Ja |
| Nettverkstilknytning / Rutingprotokoll | Statisk IPv4-ruting, Statisk IPv6-ruting |
| Nettverkstilknytning / Stakkbar | Kan stables |
