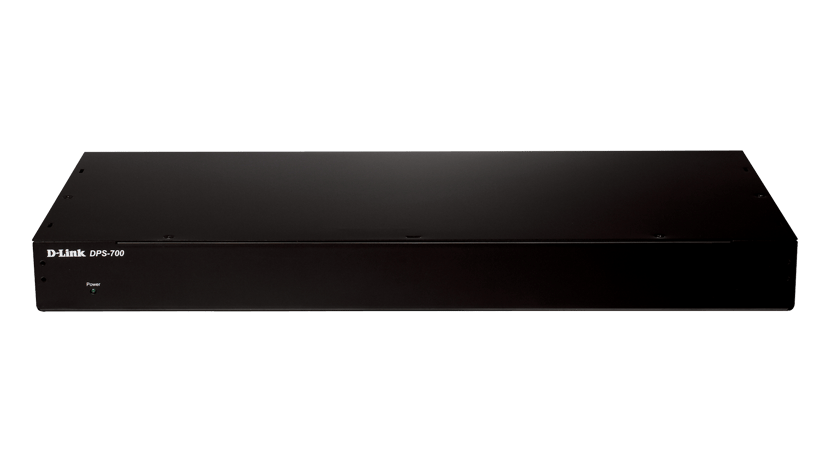

D-Link DPS-700
- Lagerstatus: Bestillingsvare
- Frakt fra: 99 kr
- Artikkelnr.
- 5010610761
- D-Link
- Prod. art. nr.
- DPS-700
Raske fakta
Produsent
D-Link
Nøkkelfunksjoner
- Connect to D-Link Ethernet and Gigabit switches
- Provide backup power for switch's built-in power supply
- Can be installed as stand-alone power supply units or mounted in 19-inch multi-slot chassis
- Hot swappable when installed in chassis
- Solid metal case housing
- LED status indicators
- Over-current protection
- Up to 589 watts output power and supports 1+1 power capability
Produktinformasjon
The DPS-700 redundant power supply (RPS) is designed to conform to the wattage requirements of D-Link's Ethernet and Gigabit switches. It is external RPS units enclosed in solid metal cases with sockets to AC or DC power sources on one end, and connect to a switch's internal power supply on the other end. It provides a low-cost, simple solution to the problem of an inadvertent failure of the internal power-supply of an Ethernet switch, which can result in the shutdown of that switch, the devices attached to its ports, or an entire network. Supporting full output power for the switch, these redundant power supplies can maximize the power availability of the switching device.Spesifikasjoner
| Topptekst | |
|---|---|
| Produsent | D-Link |
| Generelt | |
| Formfaktor, strømforsyning | Kan monteres i rack |
| Strømforsyningskompatibilitet | Nettverksmaskinvare |
| Enhetstype | Power supply - redundant - rack-mountable |
| Chassis | |
| General / Height (Rack Units) | 1U |
| Inkludert tilbehør | |
| Inkluderte kabler | 1 x power cable - external - 1 m |
| Strømenhet | |
| Strømtilførsel | 589 watt |
| Strøm | |
|---|---|
| Generelt / Produkttype | Strømforsyning - redundant |
| Frekvens | 47 - 63 Hz |
| Power | |
| Efficiency | 80% |
| Tilpassede standarder | |
| Kompatible standarder | FCC Class B certified, UL, cUL, EN 60950, UL 60950 Third Edition, CSA C22.2 |
| Størrelser og vekt | |
| Yttermål Bredde | 19.5 cm |
| Yttermål dybde | 19.6 cm |
| Yttermål Høyde | 5 cm |
| Vekt | 3.7 kg |
| Diverse | |
| Egenskaper | LED indicators, 1+1 PoE Budget |
