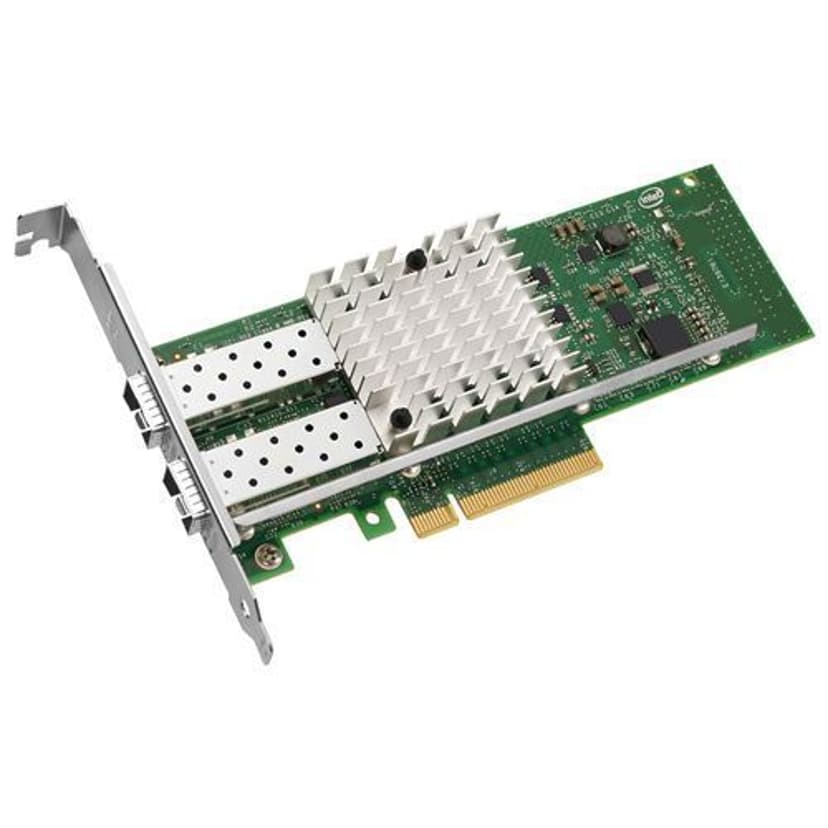

Cisco Intel Ethernet Converged Network Adapter X520

6 995 kr 222 kr/mnd (Ved leie i 36 måneder)
  • Lagerstatus: Bestillingsvare
  • Frakt fra: 99 kr
  • Artikkelnr.
  • 5010660745
  • Prod. art. nr.
  • N2XX-AIPCI01=

Raske fakta

Device Type
Network adapter - 2 ports
10 Gigabit Ethernet


  • Industry-leading, energy-efferent design for next-generation 10 Gigabit performance and mufti-core processors
  • Enables higher bandwidth and throughput from standard and low-profile PCIe slots and servers
  • Provides centralized storage area network (SAN) management at a lower cost than other iSCSI solutions
  • Enables widespread deployment
  • Provides point-and-click management of individual adapters, advanced adapter features, connection teaming, and virtual local area network (VLAN) configuration
  • Enables networked Ethernet equipment to synchronize internal clocks according to a network master clock; endpoint can then acquire an accurate estimate of the master time by compensating for link latency


Intel's family of adapters, the Intel Ethernet Converged Network Adapter X520 is the adapters for today's demanding data center environments. Data center networks are being pushed to their limits. The escalating deployments of servers with multi-core processors and demanding applications such as High Performance Computing (HPC), database clusters, and video-on-demand are driving the need for 10 Gbps connections. Customers require the rigorous requirements of running mission-critical applications in virtualized.


Produsent Cisco
Device Type Network adapter - 2 ports
Form Factor Plug-in card - low profile
Nettverkstilknytning / Produktformfaktor Plugginnkort
Nettverkstilknytning / Grensesnitts(databuss)-type PCI Express 2.0 x8
Nettverk / Type Nettverksadapter
Expansion / Connectivity
Expansion Slots 2 (total) / 2 (free) x SFP+
Nettverk og kommunikasjon
Datakjedeprotokoll 10 Gigabit Ethernet
Tilkoblingsteknologi Kablet
Nettverkstilknytning / Protokoll for fjernstyrt administrasjon SNMP, RMON, SNMP, RMON
Dataoverføringshastighet 10000 Mbps
Network & Communication
Transport Protocol TCP/IP, UDP/IP, IPSec, iSCSI
Networking / Features Flow control, fault tolerance, load balancing, VLAN support, packet filtering, IPv6 support, Accelerated iSCSI, Quality of Service (QoS), Virtual Machine Device Queues (VMDq), IPv4 support, PXE support, Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Link Aggregation Control Protocol (LACP)
Størrelser og vekt
Yttermål dybde 14.55 cm
