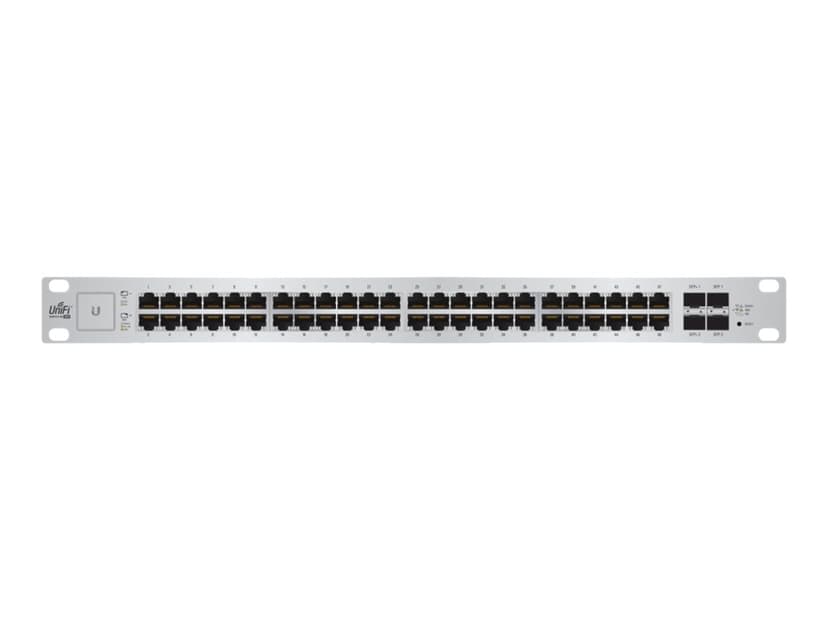

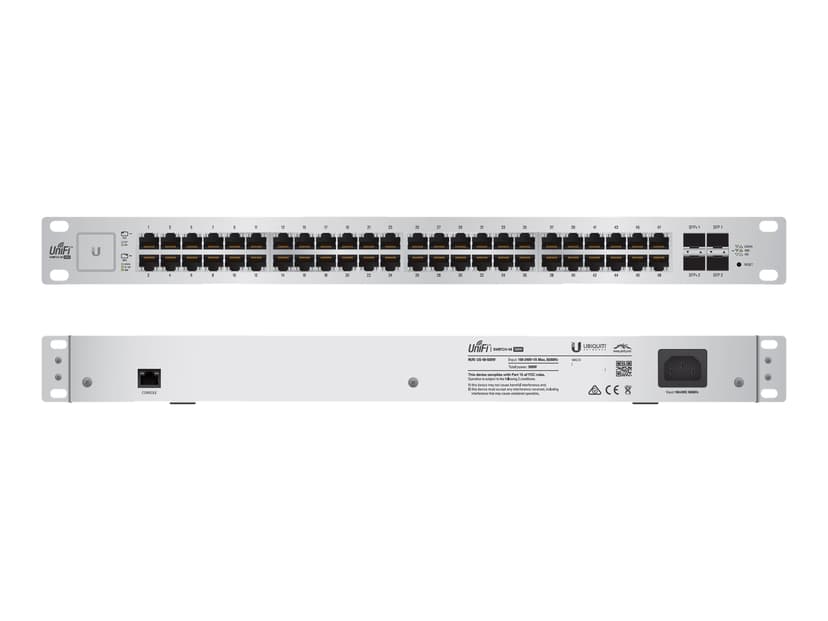

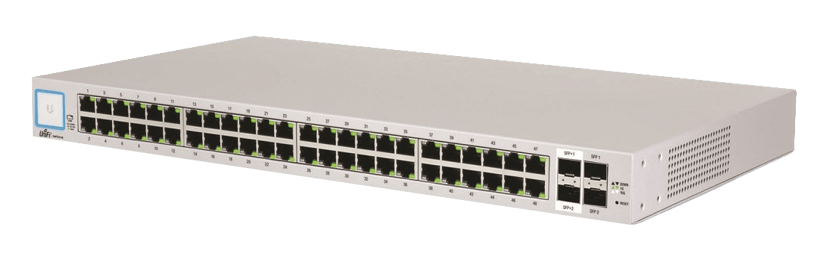

Ubiquiti UniFi Switch US-48-500W

7 295 kr 234 kr/mnd (Ved leie i 36 måneder)
  • Lagerstatus: Beregnet til vårt lager: 04.01.2017
  • Frakt fra: 99 kr
  • Artikkelnr.
  • 5010825848
  • Prod. art. nr.
  • US-48-500W

Raske fakta

Portantall
48
SFP Standard
SFP+, SFP
Vifte
Ja

Nøkkelfunksjoner

  • Non-Blocking Throughput Switching Performance
  • Gigabit Ethernet RJ45 and SFP+/SFP Ports
  • Auto-Sensing IEEE 802.3af/at PoE

Produktinformasjon

Build and expand your network with Ubiquiti Networks® UniFi® Switch, part of the UniFi line of products. The UniFi Switch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.
Switching Performance
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
PoE+ Flexibility
The UniFi Switch models are available with 24 or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V passive PoE to simplify your infrastructure.
By default, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V passive PoE devices, manually enable 24V passive PoE using the UniFi Controller software.
Fiber Connectivity
The UniFi Switch provides fiber connectivity options for easy expansion of your networks. Each UniFi Switch model includes two SFP ports for uplinks of up to 1 Gbps. Each 48-port model adds two SFP+ ports for high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.

Spesifikasjoner

Topptekst
Produsent Ubiquiti Networks
Generelt
Nettverkstilknytning / Produktformfaktor Rackmonterbar
General / Remote Management Protocol HTTP
General / MAC Address Table Size 8K
General / Subtype Gigabit Ethernet
General
Compliant Standards IEEE 802.3af, IEEE 802.3at
Performance Switching capacity : 140 Gbps ¦ Forwarding performance : 104.16 Mpps ¦ Stacking bandwidth : 20 Gbps
Ports 48 x 10/100/1000
Features Non blocking ports
Chassis
General / Height (Rack Units) 1U
Expansion / Connectivity
Interfaces 48 x 1000Base-T (PoE) - RJ-45
Expansion Slots 2 (total) / 2 (free) x SFP+
Compliant Standards
Compliant Standards IC, FCC, RoHS, WEEE, ETSI 300 019
Miscellaneous
Mounting Kit Included
Service og støtte
Service og støtte 1 års garanti
Nettverk og kommunikasjon
Tilkoblingsteknologi Kablet
Datakjedeprotokoll Ethernet, Fast Ethernet, Gigabit Ethernet
Nettverkstilknytning / Protokoll for fjernstyrt administrasjon HTTP
Network & Communication
Transport Protocol TCP/IP
Nettverk
Portantall 48
Nettverkstilknytning / Strøm via Ethernet (PoE) PoE, PoE+
SFP Standard SFP+, SFP
Vifte Ja
SFP porter 2 *pcs
SFP+ porter 2 *pcs
Nettverkstilknytning / Formfaktor Rackmonterbar
Nettverkstilknytning / Jumborammestøtte Ja
Nettverkstilknytning / Håndterbar Ja
Nettverkstilknytning / Stakkbar Nei
Størrelser og vekt
Yttermål Bredde 4.445 cm
Yttermål dybde 34.76 cm
Yttermål Høyde 48.504 cm
Vekt 5.3 kg
