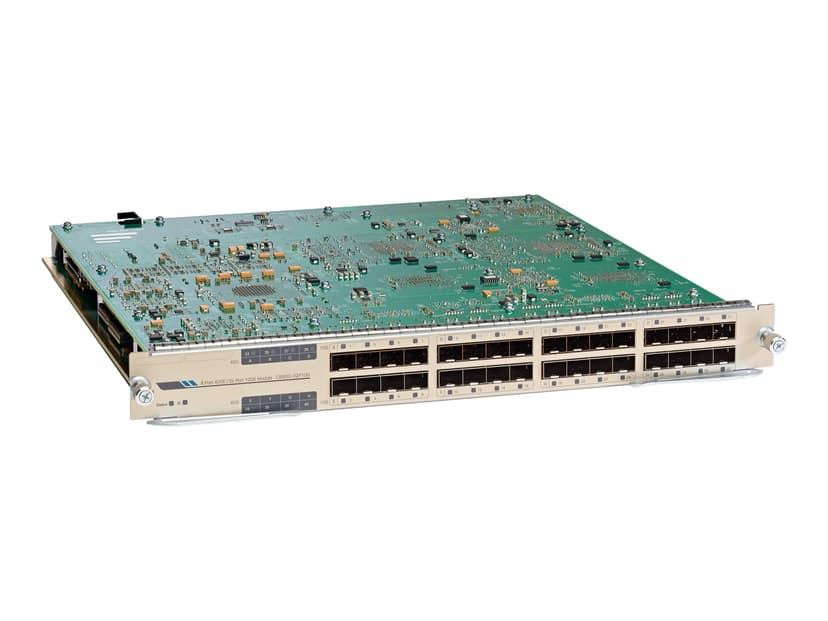

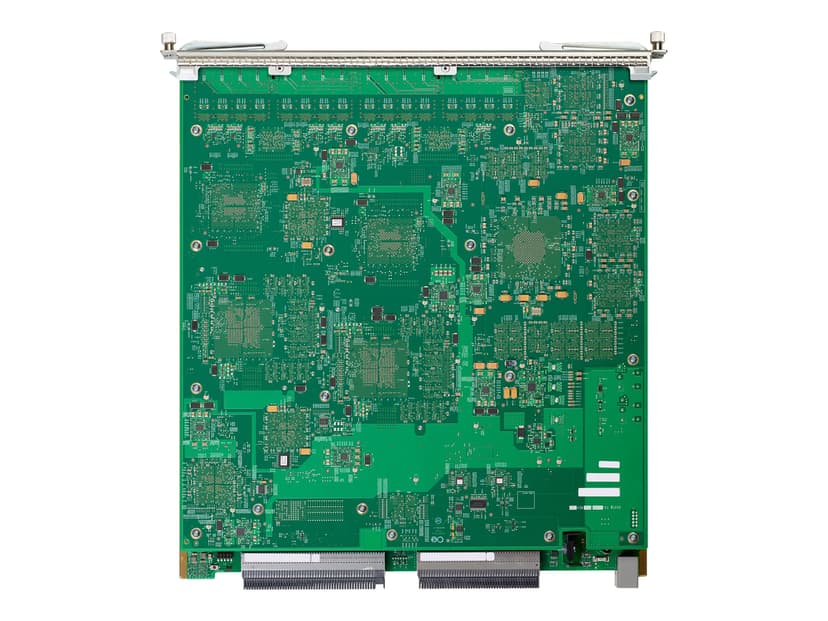

Cisco Catalyst 6800 Series 10 Gigabit Ethernet Fiber Module with dual DFC4

185 495 kr 5 871 kr/mnd (Ved leie i 36 måneder)
  • Lagerstatus: Bestillingsvare
  • Frakt fra: 99 kr
Legg merke til at dette produktet er en bestillingsvare og kan derfor ikke returneres. Produktet kan derfor heller ikke annulleres eller returneres når du har bekreftet bestillingen din. Du kan lese mer i våre kjøpsbetingelser under avsnitt 7.
  • Artikkelnr.
  • 5010926407
  • Prod. art. nr.
  • C6800-32P10G=

Produktinformasjon

The C6800 family 32-port 10-Gigabit Ethernet Fiber Module is suitable for deployment in all campus aggregation and core networks. The module supports hardware-based multicast replication, quality of service (QoS), access control lists (ACLs), jumbo frames, and low latency to enable secure and predictable performance for bandwidth-intensive applications. It's designed to meet the increasing demand for aggregation of 10-Gigabit Ethernet streams in campus deployments, as well as for high-density 10-Gigabit Ethernet transport in the core.

Spesifikasjoner

Topptekst
Produsent Cisco
Generelt
Nettverk / Type Utvidelsesmodul
Krypteringsalgoritme 128-bit AES
General
Device Type Expansion module
Form Factor Plug-in module
Compliant Standards
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, IEC 60825-1, EN 60825-1, GR-1089-CORE, CAN/CSA C22.2 No. 60950, VCCI Class A, CNS 13438(95) Class A, GR-63-CORE, KN22 Class A, ETS 300 386, AS/NZS CISPR 22, ETSI 300 019, 21 CFR 1040.10
Nettverk og kommunikasjon
Tilkoblingsteknologi Kablet
Nettverkstilknytning / Protokoll for fjernstyrt administrasjon RMON, SMON
Network & Communication
Networking / Features MPLS support, IGMP snooping, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Deficit Weighted Round Robin (DWRR), Shaped Round Robin (SRR), NetFlow, Class of Service (CoS), DiffServ Code Point (DSCP) support, Virtual Private LAN Service (VPLS)
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak, IEEE 802.1ae, IEEE 802.3an, IEEE 802.3aq
Networking / Performance Switching fabric bandwidth : 80 Gbps ¦ Forwarding performance : 120 Mpps
Størrelser og vekt
Yttermål Bredde 39.11 cm
Yttermål dybde 41.65 cm
Yttermål Høyde 4.39 cm
Vekt 6.5 kg
