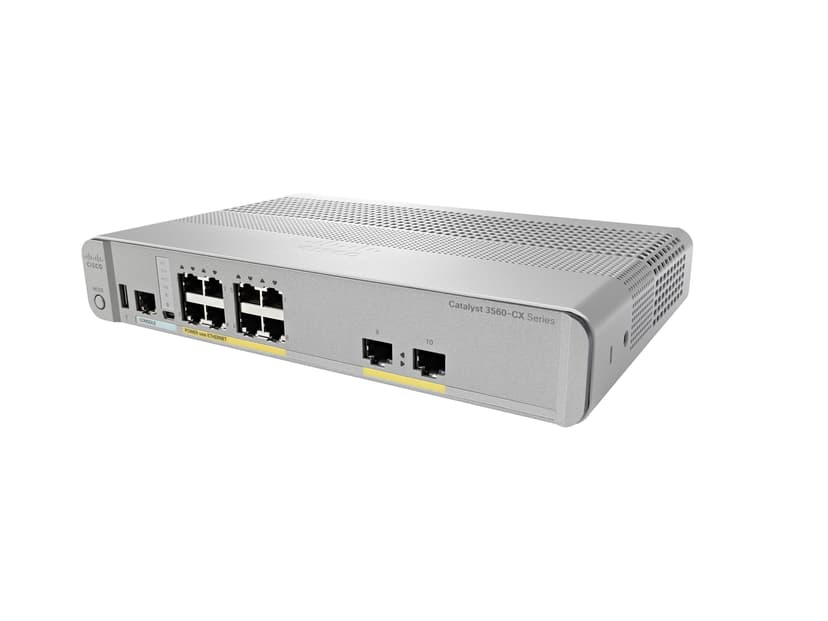

Cisco Catalyst 3560CX-8PT-S

9 495 kr 301 kr/mnd (Ved leie i 36 måneder)
  • Lagerstatus: Bestillingsvare
  • Frakt fra: 99 kr
  • Artikkelnr.
  • 5010926421
  • Prod. art. nr.
  • WS-C3560CX-8PT-S

Raske fakta

SFP Standard


  • 8 Gigabit Ethernet ports with line rate forwarding performance
  • Gigabit copper, small form-factor pluggable (SFP) or 10G SFP+ uplinks
  • Power over Ethernet Plus (PoE+) support
  • Power over Ethernet (PoE) pass-through enables the compact switch to draw Cisco Universal PoE power from the wiring closet and pass it to end devices
  • Advanced Layer 2 (LAN Base) and Layer 3 (IP Base) support
  • Fanless design and silent operation


The Catalyst 3560-CX Series compact switches help optimize network deployments. These Gigabit Ethernet (GbE) managed switches are ideal for high-speed data connectivity, Wi-Fi backhaul, and Power over Ethernet connectivity in places where space is at a premium. With a single copper or fiber cable from the wiring closet, Catalyst compact switches enable IP connectivity for devices such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints. With their quiet, fanless design and compact footprint, these switches offer mounting and connectivity flexibility. Use them in offices, classrooms, hotels, retail stores, and other enterprise and branch locations. The setup allows for shorter cable runs from the compact switches, allowing for flexibility in space redesign and growth as the devices join the network - this eliminates the need for expensive and inflexible cabling infrastructure.


Produsent Cisco
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
RAM 512 MB
Flash Memory 128 MB
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Performance Forwarding performance (64-byte packet size) : 14.9 Mpps
Ports 10 x 10/100/1000 (PoE+)
Miscellaneous / Rack Mounting Kit Optional
Features Full duplex capability, DHCP support, auto-negotiation, BOOTP support, ARP support, VLAN support, Syslog support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), fanless, Shaped Round Robin (SRR), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Class of Service (CoS), Weighted Tail Drop (WTD)
General / Subtype 10 Gigabit Ethernet
Rack-monteringssett Valgfritt (opsjon)
Expansion / Connectivity
Interfaces 8 x 1000Base-T - RJ-45 - PoE+ ¦ 2 x 1000Base-T - RJ-45 - UPOE ¦ 1 x mini-USB - Type B - management ¦ 1 x USB - Type A ¦ 1 x console - RJ-45
Compliant Standards
Compliant Standards GOST, CISPR 24, EN55022, EN55024, CISPR 22, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, 80 PLUS Silver, ANATEL, GB 4943, KCC Class A, CAN/CSA C22.2 No. 60950-1, IEC 60825, KN22, KN24, VCCI V-3/2007.04 Class A, AS/NZS CISPR22:2004 Class A
Service og støtte
Service og støtte Begrenset livstidsgaranti
Nettverk og kommunikasjon
Nettverkstilknytning / Protokoll for fjernstyrt administrasjon SNMP 1, RMON 1, RMON 2, TFTP, CLI, Telnet, SNMP 3, SNMP 2c, HTTP
Portantall 8
Nettverkstilknytning / Strøm via Ethernet (PoE) PoE+
SFP Standard SFP
Vifte Ja
SFP porter 2 *pcs
Nettverkstilknytning / Formfaktor Stasjonær, Rackmonterbar, DIN-skinnemonterbar, Veggmonterbar
Nettverkstilknytning / Jumborammestøtte 9198 byte
Nettverkstilknytning / Håndterbar Ja
Nettverkstilknytning / Rutingprotokoll RIP-1, RIP-2, Statisk IP-ruting
Nettverkstilknytning / Stakkbar Nei
Størrelser og vekt
Yttermål Bredde 26.9 cm
Yttermål dybde 17.7 cm
Yttermål Høyde 4.44 cm
Vekt 1.58 kg
