Design
Sertifisering
UL2043 plenum rating Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 5)
Egenskaper
Maksimal dataoverføringshastighet
2400 Mbit/s
Nettverksstandard
IEEE 802.11ax, IEEE 802.11mc
Modulator
1024-QAM, 16-QAM, 256-QAM, 64-QAM, BPSK, CCK, QPSK
Frekvensbånd og driftskanaler
20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.9 Gbps GHz
Ethernet LAN dataoverføringshastigheter
10, 100, 1000, 2500, 10, 100, 1000, 2500, 5000 Mbit/s
Andre funksjoner
Montering

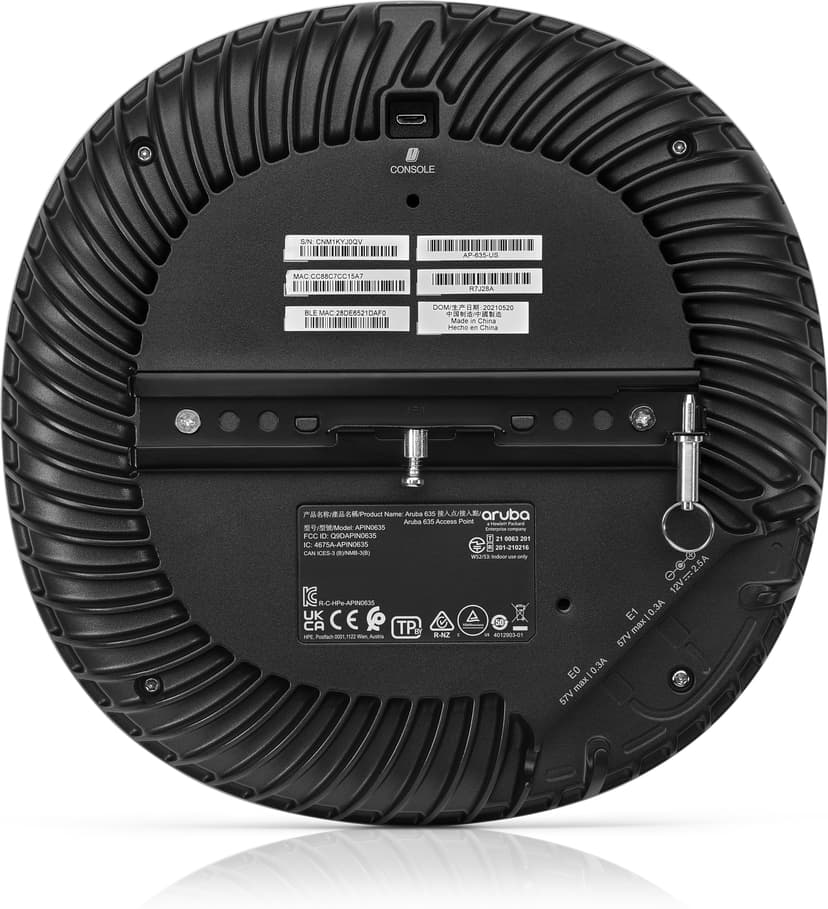

A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately).
I/O-porter
E0, E1: Two Ethernet wired network ports (RJ-45), Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX, 2.5Gbps speed complies with NBase-T and 802.3bz specifications, POE-PD: 48Vdc (nominal) 802.3af/at/bt POE (class 3 or higher), 802.3az Energy Efficient Ethernet (EEE)
Ytelse
Kompatible operativsystemer
AP-634 (excluding 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.11.2.0, HPE Aruba Networking Wireless Operating System 10.6.0.0 AP-634 (including 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.12.0.0, HPE Aruba Networking Wireless Operating System 10.7.0.03 AP-635: HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.9.0.0, HPE Aruba Networking Wireless Operating System 10.4.0.0 Standard power product class operation of the AP-634 is only supported on HPE Aruba Networking OS 10.7.0.0 and later deployments and HPE Aruba Networking OS 8.12.0.0 and later deployments that include a HPE Aruba Networking Mobility Conductor. Standard power operation is not supported on Instant OS deployments or 8.x HPE Aruba Networking OS deployments without a HPE Aruba Networking Mobility Conductor.
